• Handle the widest variety of materials ranging from abrasive minerals to baby food, explosive chemicals to clinical pharmaceuticals.
• working under adverse operating conditions and temperatures and pressures.
• The capacity varies between 50 kg / hr. and 50,000 kg / hr. depending on the product characteristics. *Have easy access to internal components and have very close operating clearances for optimum efficiency.
• Designed to control the flow in Dry Solid Metering,Discharging and also in pneumatic conveying Systems operating under negative or positive pressure differentials.
• Close manufacturing tolerances and a wide range of interchangeable components and design features allow each valve supplied to match a particular application.
• Sizes ranging from 150 mm to 1000 mm.
• available in various materials of construction such as CI / MS, SS304,SS316/L,ALUMINIUM.

• Light Duty: Suitable for low pressure differential such as discharge of bag filters, cyclones, hoppers etc; and for handling soft and mildly abrasive materials.
• Heavy Duty: Suitable for handling abrasive powders and for high pressure differential duities such as Pneumatic Conveying Systems and feeding to pressured Chambers.

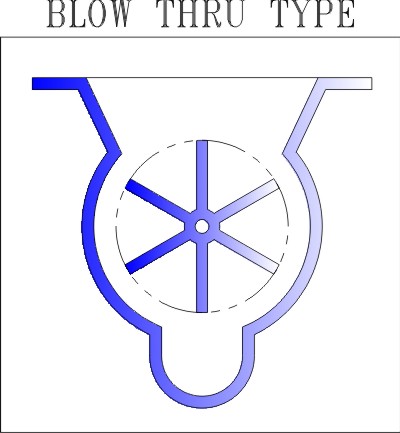

Identical to Drop Thru series Rotary Air Locks but incorporating an integral entrainment trough for directly connecting apneumatic pipeline. Suitable for sticky, hygroscopic materials.

For gently handling any sharable granulated material or plastic pellets where product shear or damage is to be minimized.

Kleenair quick clean rotary valves are used where frequent cleaning of internals is desired, either for hygenic condition or where frequent product change over is desired. Useful for pharmaceutical, food, dairy and pigment industry. Available in sanitary / bright polish surface finish.

• Sturdy construction.
• Rapid cleaning of rotor.
• Adjustable tolerance [except for rigid rotor

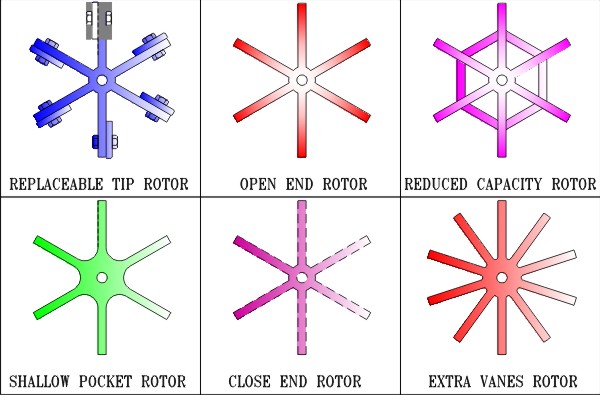

• Interchangeable rotor blades.
• Available for a range of pressure differentials.
• Designs available to suit wide temp, range.
