• The fumes generated during operation of AOD are effectively captured by positioning a special hood over the mouth of the furnace, which is movable on trolley or by a swivel joint.
  • Once the operation is complete the hood along with water cooled duct is either moved horizontally backward or swiveled in the same plane to other position to facilitate metal pouring.
  • Temperature of fumes, having in a metal oxide dust. varies from 500-700 deg.

Kleenair supplied automated gas cleaning plants on turnkey basis comprising of :
  • Water cooled duct.
  • Air cooled ducts.
  • Air-to-air heat exchanger
  • Off-line pulse jet bag-house with bag cleaning system and compressor
  • ID fan
  • MCC
  • Control & measuring instrument with PLC.
  • On-line emission measurement
  • Dust disposal system.Emission levels up-to 10 mg/nm3 are achieved with power saving logic and on-line     fault detection system.

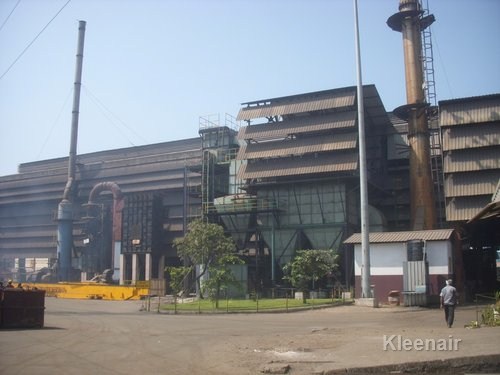

Kleenair has supplied plants on AOD furnaces up-to 35 MT capacity in India as well as abroad.
